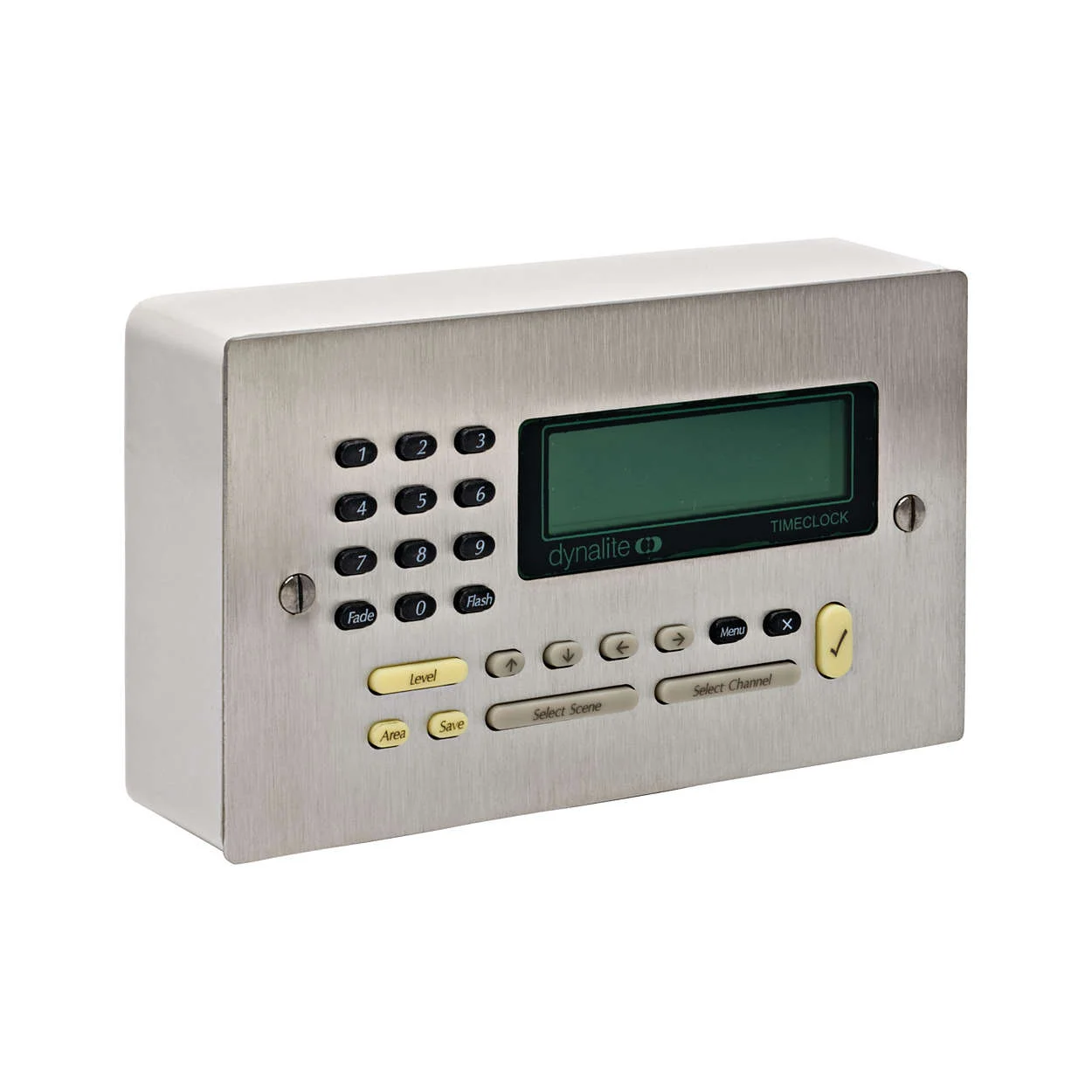

The DTC602 is an astronomical 365 day timeclock with Sunrise/Sunset tracking, automatic daylight saving adjustment and powerful macro and conditional logic functions. The timeclock interfaces with other devices over the DyNet RS485 network to automate tasks and events. It may be used as an energy management controller or simply to select scenes at preset times of the day or week. The DTC602 is powerful enough to provide full automation of a large commercial project and can be programmed with events that automatically run at the specified time. A typical application entails automating lighting levels in a restaurant for breakfast, lunch, dinner, evening entertainment and cleaning. A manual button press can override the pre- programmed events until the next timed event occurs.

In energy management applications, the timeclock sets the operating mode of other devices, such as Philips Dynalite DUS704 sensors, to give priority to either IR, PIR or PE facilities, depending on the time of day or day of week. The DTC602 can be programmed and operated remotely via a PC or via the front panel LCD display and keypad, which incorporates a PIN password to prevent unauthorized adjustment. The DTC602 can be used to make programming changes to a Philips Dynalite system without the use of a computer. The LCD display will help guide the user step by step through the programming task. Information such as channel, area and preset scene names are automatically uploaded from the network to assist in programming. It can be used in conjunction with standard control panels to access preset scenes that are not commonly used or that require protection from accidental selection. The device is available in Aus/US (DTC) & UK/Euro (DTCE) mounting configurations.

Contact us for pricing

DYNALITE DTC602 & DTCE602 DATA SHEET
